Figure 1 |
Figure 2 |
In Figure 1 the declination circle for the sun is cut by the horizon
circle. The angle A corresponds to the path of the sun below the horizon,
hence it is invisible then.

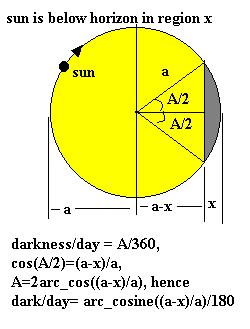

In Figure 2, a side view, the horizon line makes an angle L, the observer's latitude, with respect to the north celestial pole,ncp. The sun's celestial latitude is G. In Figure 3, assuming uniform daily motion on the declination circle, we determine the fraction of the day spent in darkness in terms of the angle A, which can be obtained graphically by measuring x and a in Fig.2. With the aid of Fig 2. we can also determine that (a-x)/a = tanL*tanG., derivation So the fraction of the day spent in darkness is
|
Figure 3 |
