User name Saha
Log entry time 12:20:10 on February10,2000
Entry number 33357
keyword=Harp Scan - No Raster
Harp scan - No Raster
____________________
Harp Scan #422
Beam Spot size at Scanner #6:
Dx = 82 um
Dy = 86 um
Beam Position at Scanner #6
x = 455 um beam right
y = 15 um beam low
MEDM ACC screen
x = 50 um beam right
y = 43 um beam up
BPM's have to be calibrated again, since Pascal downloaded the new survey numbers on the scanner data file. Hence all data for 2.903 GeV and 1.953 GeV should be corrected. We plan to do the calibration run when we go to 4.803 GeV data.

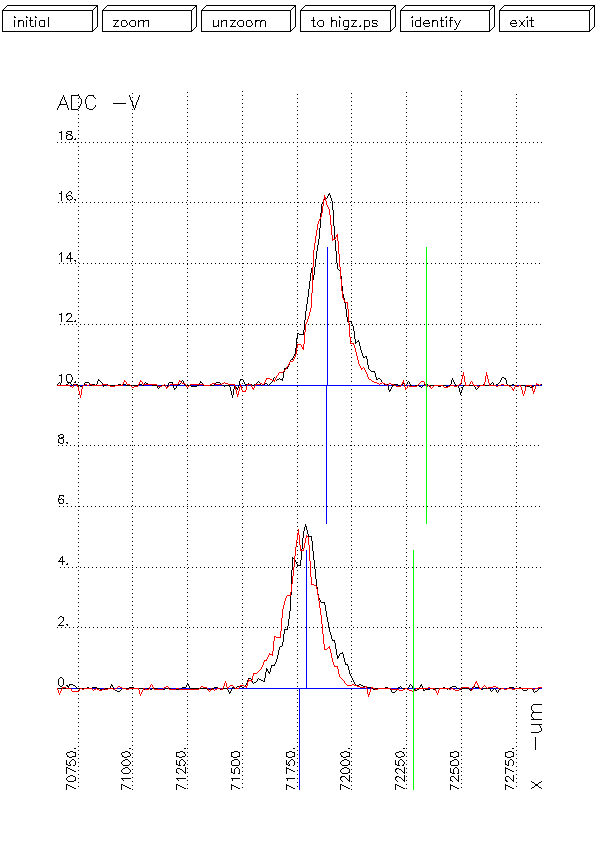

FIGURE 1
