User name Tieulent
Log entry time 23:15:26 on February12,2000
Entry number 33782
keyword=HARP scan
WE starft the first harp scan (run 499) with sigma x = 200 and sigma y = 123 on the scanner 6.
After couple iteration on the quad H01 and C20 we get these final value.
H01 is now : -10668.0
C20 is now : 45907.7
BPM 3bX= -0.002
BPM 3BY = 0.037

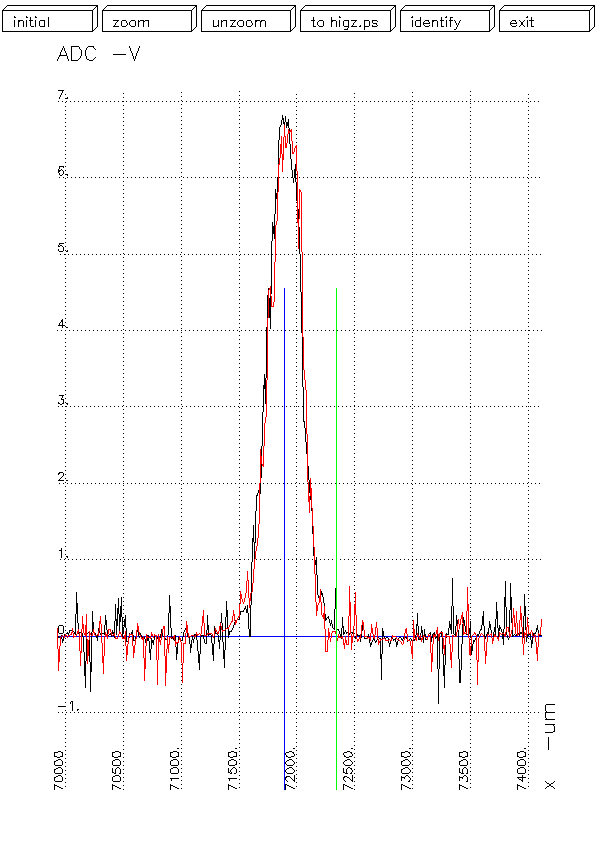

HARP scan run 515 (No Raster)
scan 6 :
sigma x = 136. um
sigma y = 135 um
HARP scan run 516 (Raster ON)
scan 6
x base width = 4854 um
45 deg base width = 9631 um
FIGURE 1
FIGURE 2
