User name kuss
Log entry time 12:06:18 on February13,2000
Entry number 33845
This entry is a followup to: 33843
keyword=analysis harp scan kin #7../scan_517.data
SUN FEB 13 11:40:44 2000
5.00000 Microamp CW ACHRO
ata56,Co
+5 S 8 5.
-5 S 8 5.
+6 S 8 5.
-6 S 8 5.
wire # 1 wire # 2 wire # 3
scanner # 5 nominal (um): 22619.7 49144.7 72279.7
forward (um): 22671.7 49574.3 72611.7
backward (um): 22632.4 49581.6 72604.3
fwd/bwd average (um): 22652.1 49577.9 72608.0
fwd-bwd distance (um): 39.3 -7.3 7.5
aver.-nomin. distance (um): 32.4 433.3 328.3
fwd detector yield (V/uA): 1.4 2.4 2.5
bwd " " " : 1.3 3.2 2.4
fwd peak base width. (um): 747.7 624.4 458.4
bwd " " " " : 651.2 672.6 458.4
avg peak base width. (um): 699.5 648.5 458.4
fwd peak sigma (um): 157.5 136.4 102.5
bwd " " " " : 145.8 147.0 100.5
avg peak sigma (um): 151.6 141.7 101.5
error on avg sigma (+- um): 5.9 5.3 1.0
fwd average step size (um): 12.0 12.0 12.1
bwd " " " " : 12.0 12.0 12.1
fwd peak average level (mV): 1510.8 2845.6 3044.1
bwd " " " " : 1340.2 3767.3 2991.4
fwd peak filling factor (%): 47.9 48.7 54.4
bwd " " " " : 45.0 53.9 51.6
fwd fine offset level (mV): -0.1 0.1 0.5
bwd " " " " : 0.0 0.1 0.1
fwd offset slope (mV/mm): 0.0 0.0 0.0
bwd " " " : 0.0 0.0 0.0
fwd rms noise level (mV): 97.9 102.1 89.4
bwd " " " " : 88.2 100.9 92.1
fwd avg. signal/rms noise : 15.4 27.9 34.0
bwd " " " " : 15.2 37.3 32.5
fwd baryc. accuracy rms(um): 2.1 1.1 0.8
bwd " " " " : 2.2 0.8 0.8
fwd ADC satur.? : F F F if |Vmax|>9.9 V
bwd " " : F F F
fwd beam compact?: F F T if fil. fact.>.5
bwd beam compact?: F T T
beam stable?: F T T if |fwd-bwd|<30um
fwd good signal/noise?: T T T if sig./noise>10.
../scan_517.data
SUN FEB 13 11:40:44 2000
5.00000 Microamp CW ACHRO
ata56,Co
+5 S 8 5.
-5 S 8 5.
+6 S 8 5.
-6 S 8 5.
wire # 1 wire # 2 wire # 3
scanner # 5 nominal (um): 22619.7 49144.7 72279.7
forward (um): 22671.7 49574.3 72611.7
backward (um): 22632.4 49581.6 72604.3
fwd/bwd average (um): 22652.1 49577.9 72608.0
fwd-bwd distance (um): 39.3 -7.3 7.5
aver.-nomin. distance (um): 32.4 433.3 328.3
fwd detector yield (V/uA): 1.4 2.4 2.5
bwd " " " : 1.3 3.2 2.4
fwd peak base width. (um): 747.7 624.4 458.4
bwd " " " " : 651.2 672.6 458.4
avg peak base width. (um): 699.5 648.5 458.4
fwd peak sigma (um): 157.5 136.4 102.5
bwd " " " " : 145.8 147.0 100.5
avg peak sigma (um): 151.6 141.7 101.5
error on avg sigma (+- um): 5.9 5.3 1.0
fwd average step size (um): 12.0 12.0 12.1
bwd " " " " : 12.0 12.0 12.1
fwd peak average level (mV): 1510.8 2845.6 3044.1
bwd " " " " : 1340.2 3767.3 2991.4
fwd peak filling factor (%): 47.9 48.7 54.4
bwd " " " " : 45.0 53.9 51.6
fwd fine offset level (mV): -0.1 0.1 0.5
bwd " " " " : 0.0 0.1 0.1
fwd offset slope (mV/mm): 0.0 0.0 0.0
bwd " " " : 0.0 0.0 0.0
fwd rms noise level (mV): 97.9 102.1 89.4
bwd " " " " : 88.2 100.9 92.1
../scan_517.data
SUN FEB 13 11:40:44 2000
5.00000 Microamp CW ACHRO
ata56,Co
+5 S 8 5.
-5 S 8 5.
+6 S 8 5.
-6 S 8 5.
wire # 1 wire # 2 wire # 3
scanner # 5 nominal (um): 22619.7 49144.7 72279.7
forward (um): 22671.7 49574.3 72611.7
backward (um): 22632.4 49581.6 72604.3
fwd/bwd average (um): 22652.1 49577.9 72608.0
fwd-bwd distance (um): 39.3 -7.3 7.5
aver.-nomin. distance (um): 32.4 433.3 328.3
fwd detector yield (V/uA): 1.4 2.4 2.5
bwd " " " : 1.3 3.2 2.4
fwd peak base width. (um): 747.7 624.4 458.4
bwd " " " " : 651.2 672.6 458.4
avg peak base width. (um): 699.5 648.5 458.4
fwd peak sigma (um): 157.5 136.4 102.5
bwd " " " " : 145.8 147.0 100.5
avg peak sigma (um): 151.6 141.7 101.5
error on avg sigma (+- um): 5.9 5.3 1.0
fwd average step size (um): 12.0 12.0 12.1
bwd " " " " : 12.0 12.0 12.1
fwd peak average level (mV): 1510.8 2845.6 3044.1
bwd " " " " : 1340.2 3767.3 2991.4
fwd peak filling factor (%): 47.9 48.7 54.4
bwd " " " " : 45.0 53.9 51.6
fwd fine offset level (mV): -0.1 0.1 0.5
bwd " " " " : 0.0 0.1 0.1
fwd offset slope (mV/mm): 0.0 0.0 0.0
bwd " " " : 0.0 0.0 0.0
fwd rms noise level (mV): 97.9 102.1 89.4
bwd " " " " : 88.2 100.9 92.1
fwd avg. signal/rms noise : 15.4 27.9 34.0
bwd " " " " : 15.2 37.3 32.5
fwd baryc. accuracy rms(um): 2.1 1.1 0.8
bwd " " " " : 2.2 0.8 0.8
fwd ADC satur.? : F F F if |Vmax|>9.9 V
bwd " " : F F F
fwd beam compact?: F F T if fil. fact.>.5
bwd beam compact?: F T T
beam stable?: F T T if |fwd-bwd|<30um
fwd good signal/noise?: T T T if sig./noise>10.
bwd good signal/noise?: T T T
fwd plateau duration (s): 6.4
bwd " " " : 6.4
fwd trigger frequency (Hz): 1057.0
bwd " " " : 1057.0
scanner # 6 nominal (um): 22735.1 49155.1 72340.1
forward (um): 21868.0 48824.4 71825.0
backward (um): 21883.9 48838.4 71819.6
fwd/bwd average (um): 21875.9 48831.4 71822.3
fwd-bwd distance (um): -15.9 -13.9 5.4
aver.-nomin. distance (um): -859.1 -323.7 -517.8
fwd detector yield (V/uA): 2.8 3.2 2.9
bwd " " " : 2.7 3.1 2.4
fwd peak base width. (um): 808.1 841.7 482.8
bwd " " " " : 806.9 746.5 471.2
avg peak base width. (um): 807.5 794.1 477.0
fwd peak sigma (um): 182.1 181.7 111.9
bwd " " " " : 173.8 163.4 102.5
avg peak sigma (um): 178.0 172.6 107.2
error on avg sigma (+- um): 4.1 9.1 4.7
fwd average step size (um): 12.0 12.0 12.1
bwd " " " " : 12.0 12.0 12.1
fwd peak average level (mV): 2734.0 3119.1 3395.3
bwd " " " " : 2602.0 2939.5 2881.7
fwd peak filling factor (%): 53.2 51.4 57.6
bwd " " " " : 50.6 46.5 51.3
fwd fine offset level (mV): 0.3 0.0 0.8
bwd " " " " : 0.2 0.0 0.4
fwd offset slope (mV/mm): 0.0 0.0 0.0
bwd " " " : 0.0 0.0 0.0
fwd rms noise level (mV): 173.8 156.9 138.2
bwd " " " " : 149.0 124.5 154.3
fwd avg. signal/rms noise : 15.7 19.9 24.6
bwd " " " " : 17.5 23.6 18.7
fwd baryc. accuracy rms(um): 2.2 1.7 1.1
bwd " " " " : 1.9 1.5 1.4
fwd ADC satur.? : F F F if |Vmax|>9.9 V
bwd " " : F F F
fwd beam compact?: T T T if fil. fact.>.5
bwd beam compact?: T F T
beam stable?: T T T if |fwd-bwd|<30um
fwd good signal/noise?: T T T if sig./noise>10.
bwd good signal/noise?: T T T
fwd plateau duration (s): 6.4
bwd " " " : 6.4
fwd trigger frequency (Hz): 1057.0
bwd " " " : 1057.3
**********************************************
scanner # 5 TJ name=IHA1H03A
Wire combination H position V position
# 1 # 2 233.um 200.um
# 1 # 3 328.um 296.um
# 2 # 3 328.um 105.um
weighted average 328.um 200.um
roll angle -7.200mr -0.413deg 0.000deg
Absolute beam h position: 328.um (+ means at beam left)
Absolute beam v position: 200.um (+ means too high)
Horizontal sigma (um): 101.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 106.006
Ellipse tilt angle (deg. clockw.): 118.614
Ellipse major axis length (um) : 107.861
Ellipse minor axis length (um) : 99.5173
**********************************************
scanner # 6 TJ name=IHA1H03B
Wire combination H position V position
# 1 # 2 -511.um 45.um
# 1 # 3 -518.um 38.um
# 2 # 3 -518.um 52.um
weighted average -518.um 45.um
roll angle 0.533mr 0.031deg -0.350deg
Absolute beam h position: -518.um (+ means at beam left)
Absolute beam v position: 45.um (+ means too high)
Horizontal sigma (um): 107.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 138.721
Ellipse tilt angle (deg. clockw.): 93.5012
Ellipse major axis length (um) : 138.826
Ellipse minor axis length (um) : 107.027
**********************************************
geographical # Jlab name read Chronological #
in the beam line on the file in the file
5 IHA1H03A 1
6 IHA1H03B 2
Target beam h position: -670.um (+ for beam left)
Target beam v position: 17.um (+ for too high)
Target beam h angle: 0.136mrad (+ for clockwise)
Target beam v slope: -0.025mrad (+ for ascending slope)

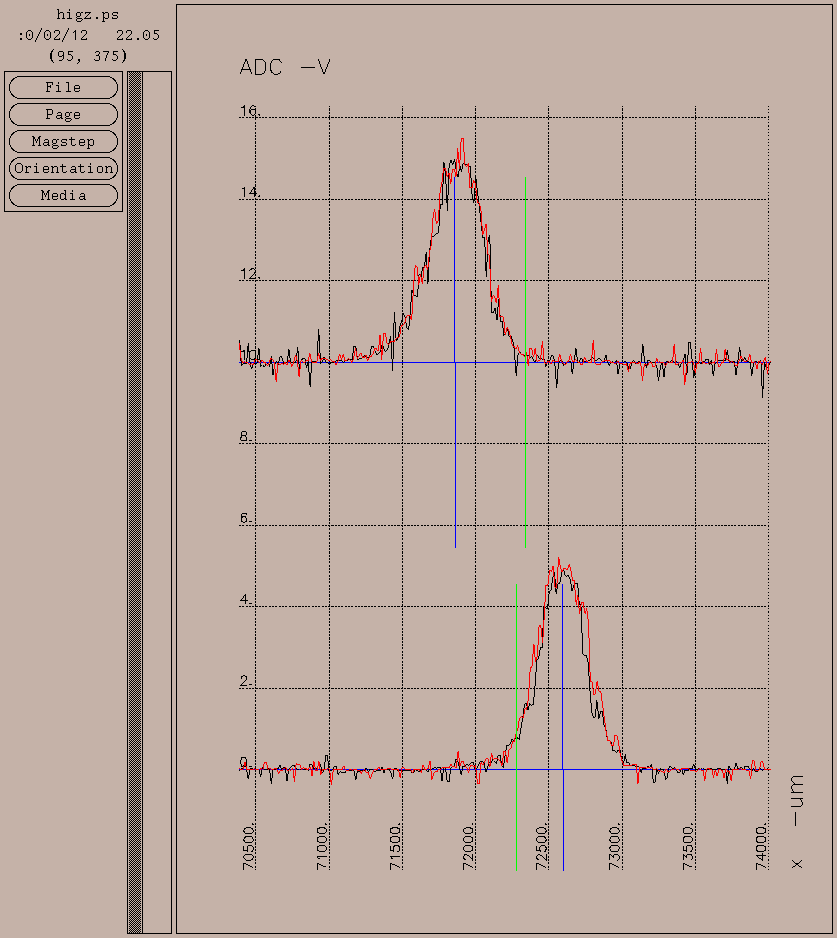

FIGURE 1
