    User name LeRose

    Log entry time 18:52:16 on February16,2000

    Entry number 34143

    Followups:

    keyword=Ytgt: Q2 Electron Problem

    Problem of incorrect ytgt reconstruction traced to incorrect field in Q2 electron. While trying to reset the current to get the correct field back (as in run 2207) noticed that the current readback in Q2 was dead. Javier has verified that the DVM is timing out. We've been looking at it all along except there was so much on the plot you couldn't see it. See attached plots with the other traces removed and included.

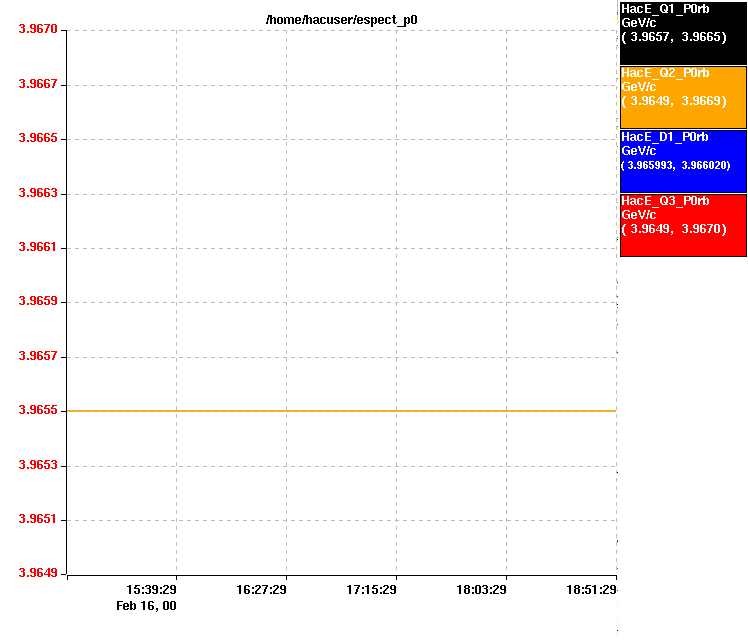

    FIGURE 1

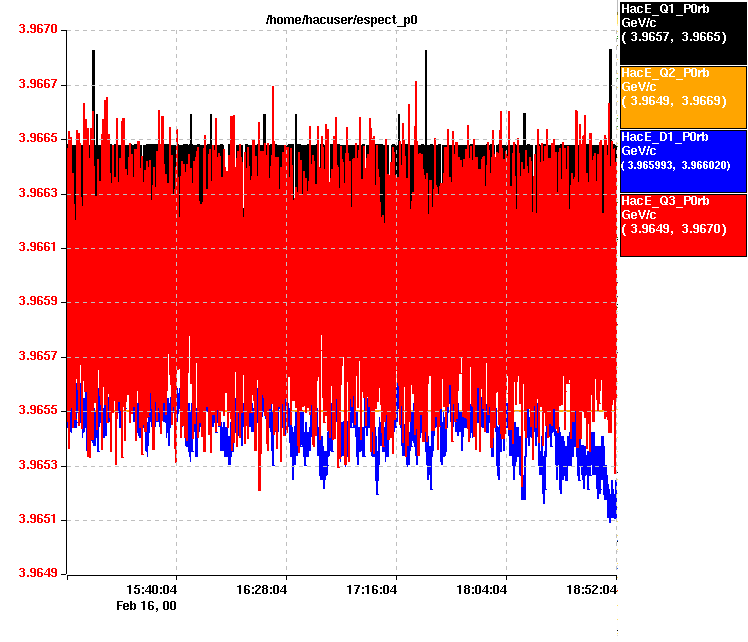

    FIGURE 2
