User name M. Rvachev
Log entry time 23:54:18 on March17,2000
Entry number 36382
keyword=2 cards silent on hadron v1 VDC plane
We found out that 2 cards on hadron arm v1 plane (wires 305-320; 337-352) don't
produce TDC signals (see pictures), and wires 289-304 apparently produce more signals then they should. We looked back at runs we have available now, and it
turned out this problem was around at least since 3am, March 17th (checked run
2785). Bogdan said he will come tomorrow morning and take a look at it.

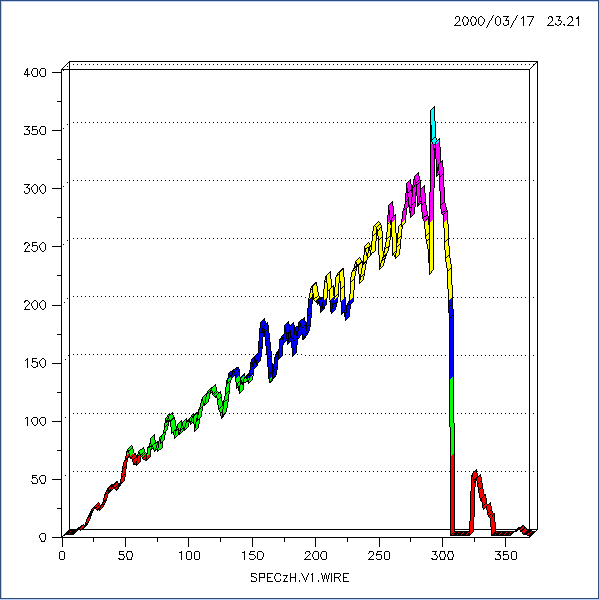

FIGURE 1
FIGURE 2
