User name bogdanw
Log entry time 14:44:25 on March19,2000
Entry number 36492
keyword=harp scan raster ON, run 670
harp scan raster ON
scanner # 5 TJ name=IHA1H03A
Wire combination H position V position
# 1 # 2 -2406.um 1311.um
# 1 # 3 -2314.um 1404.um
# 2 # 3 -2314.um 1219.um
weighted average -2314.um 1311.um
roll angle -6.917mr -0.396deg 0.000deg
Absolute beam h position: -2314.um (+ means at beam left)
Absolute beam v position: 1311.um (+ means too high)
Horizontal sigma (um): 862.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 1017.18
Ellipse tilt angle (deg. clockw.): 82.2310
Ellipse major axis length (um) : 1019.91
Ellipse minor axis length (um) : 858.320
**********************************************
scanner # 6 TJ name=IHA1H03B
Wire combination H position V position
# 1 # 2 -355.um -221.um
# 1 # 3 -350.um -217.um
# 2 # 3 -350.um -225.um
weighted average -350.um -221.um
roll angle -0.291mr -0.017deg -0.350deg
Absolute beam h position: -350.um (+ means at beam left)
Absolute beam v position: -221.um (+ means too high)
Horizontal sigma (um): 1185.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 1200.35
Ellipse tilt angle (deg. clockw.): 50.2299
Ellipse major axis length (um) : 1233.79
Ellipse minor axis length (um) : 1150.36
**********************************************
geographical # Jlab name read Chronological #
in the beam line on the file in the file
5 IHA1H03A 1
6 IHA1H03B 2
Target beam h position: 3.um (+ for beam left)
Target beam v position: -497.um (+ for too high)
Target beam h angle: -0.315mrad (+ for clockwise)
Target beam v slope: -0.246mrad (+ for ascending slope)

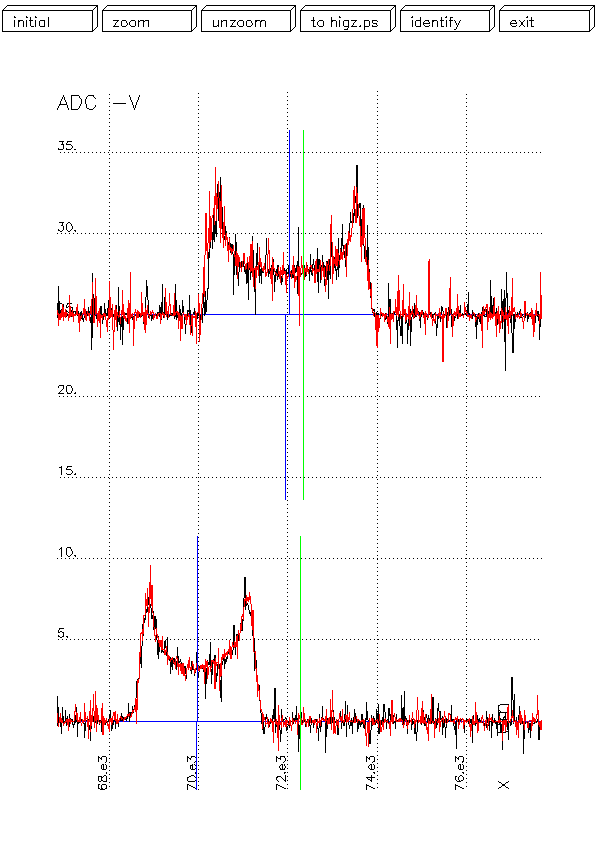

FIGURE 1
