User name F.Benmokhtar
Log entry time 10:36:40 on March31,2000
Entry number 37458
keyword=Harp scan Run#763
Harp scan Run#763
**********************************************
scanner # 5 TJ name=IHA1H03A
Wire combination H position V position
# 1 # 2 -2338.um -186.um
# 1 # 3 -2235.um -83.um
# 2 # 3 -2235.um -289.um
weighted average -2235.um -186.um
roll angle -7.786mr -0.446deg 0.000deg
Absolute beam h position: -2235.um (+ means at beam left)
Absolute beam v position: -186.um (+ means too high)
Horizontal sigma (um): 50.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 401.725
Ellipse tilt angle (deg. clockw.): 95.9061
Ellipse major axis length (um) : 403.858
Ellipse minor axis length (um) : 28.7770
**********************************************
scanner # 6 TJ name=IHA1H03B
Wire combination H position V position
# 1 # 2 -277.um -100.um
# 1 # 3 -287.um -110.um
# 2 # 3 -287.um -89.um
weighted average -287.um -100.um
roll angle 0.804mr 0.046deg -0.350deg
Absolute beam h position: -287.um (+ means at beam left)
Absolute beam v position: -100.um (+ means too high)
Horizontal sigma (um): 99.
Elliptic approximation:
(tilt angle is from horizontal axis to major axis)
Vertical sigma (um): 152.181
Ellipse tilt angle (deg. clockw.): 71.2350
Ellipse major axis length (um) : 157.812
Ellipse minor axis length (um) : 89.6338
**********************************************

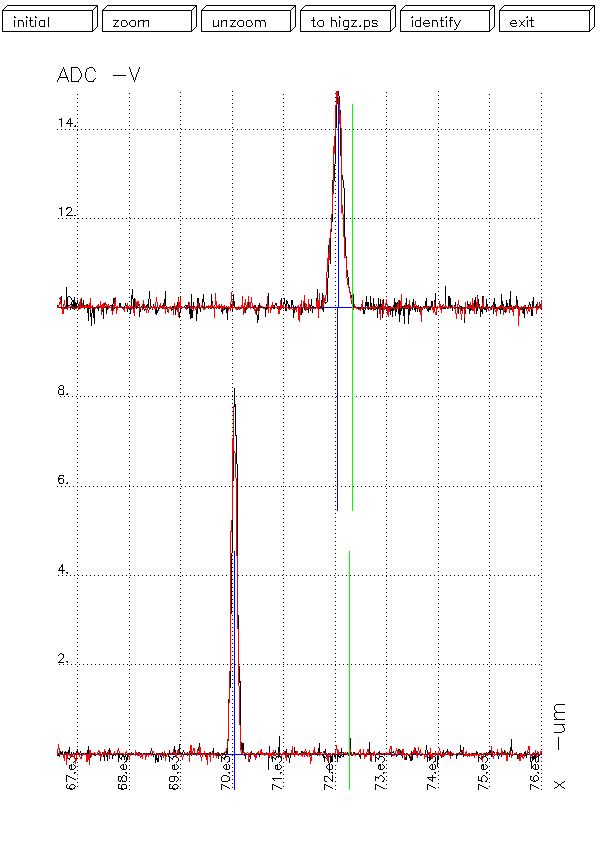

FIGURE 1
