keyword=S0 Data for T3, T4

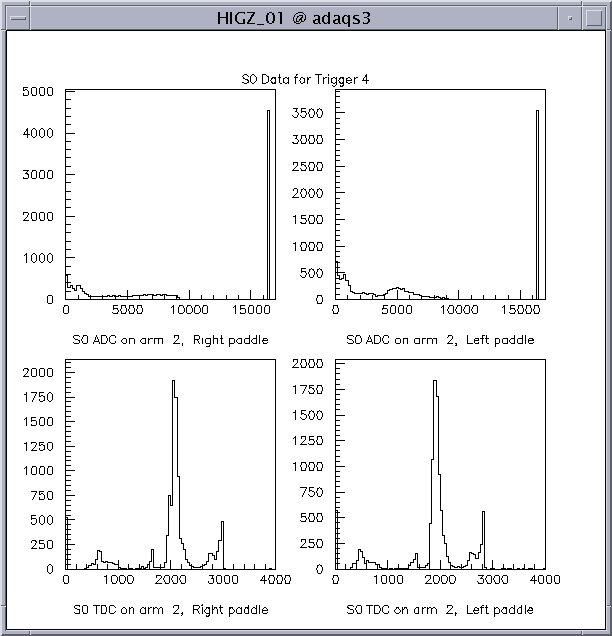

Here are S0 ADC and TDC data for triggers 3 and 4
(separately). I.e. from pure samples of these triggers.
The peak at ~16000 is, I believe, due to overflows of
the ADC (it puts its last bit there). A peculiarity of
this ADC, which is in slot 25 ROC 2 of H-arm, was
noted for E-arm triggers T1,T2. Instead of being empty
it often contains data with all data bits zero or all bits 1.
This happens on channels involved in S0, among others.
FIGURE 1
FIGURE 2
