keyword=unexplained VDC weirdness
plots below of angle vs. position (wire number) in vdc planes.
question #1 -- why do we have gaps in the planes? looks like it may
be either a detmap problem, or a cabling problem. however the gaps look
to be in the same place in all planes, so my bet is on the detmap.
.
question #2 -- why do the plots for SL look so different than those for SR?
the slopes of the tracks should be similar for both spectrometers. Hard to tell
which one is correct, since I cannot find the definition of "slope" in the
espace manual (i know, use the source, luke).

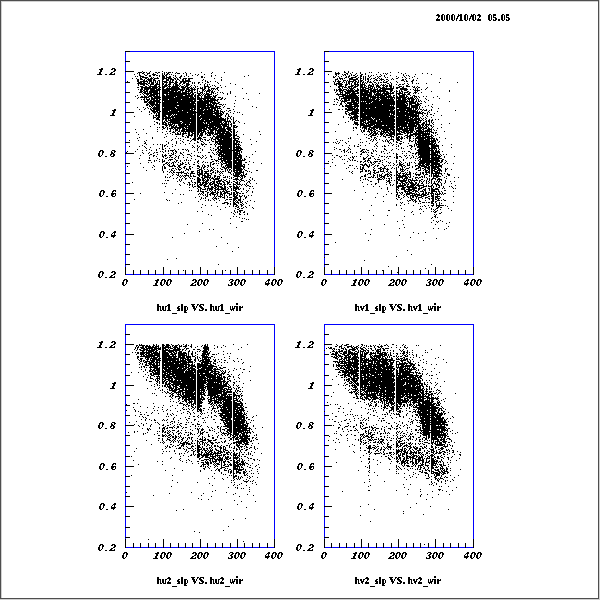

FIGURE 1

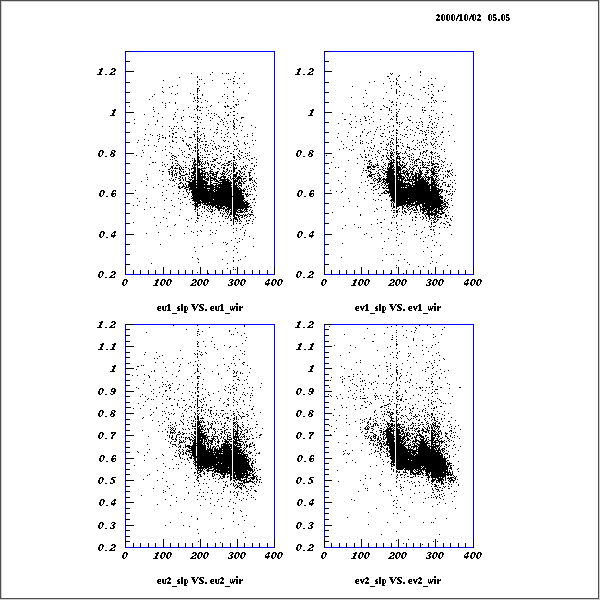

FIGURE 2
