Log entry time 10:37:32 on October 9,2000
Entry number 49886
keyword=Harp scans, Raster on
Harp scans, 5uA cw
With raster on:
***************************************************************
Uncorrected Corrected Sigma Base
position position Width Width
Scanner #5 4ax: 602.0um 682.0um 1592.0um
Scanner #5 4ay: -1145.00um -1055.00um 1610.1um
Scanner #6 4bx: 392.00um 192.00um 1759.0um
Scanner #6 4by: 631.00um 441.00um 1484.3um
***************************************************************
Uncorrected Corrected
position position
Target x pos : 354.19 um 103.77 um (+ for beam left)
Target y pos : 950.80 um 710.38 um (+ for too high)
Beam h angle: 0.03 mrad 0.08 mrad (+ for clockwise)
Beam v slope: 0.29 mrad 0.24 mrad (+ for ascending slope)
***************************************************************

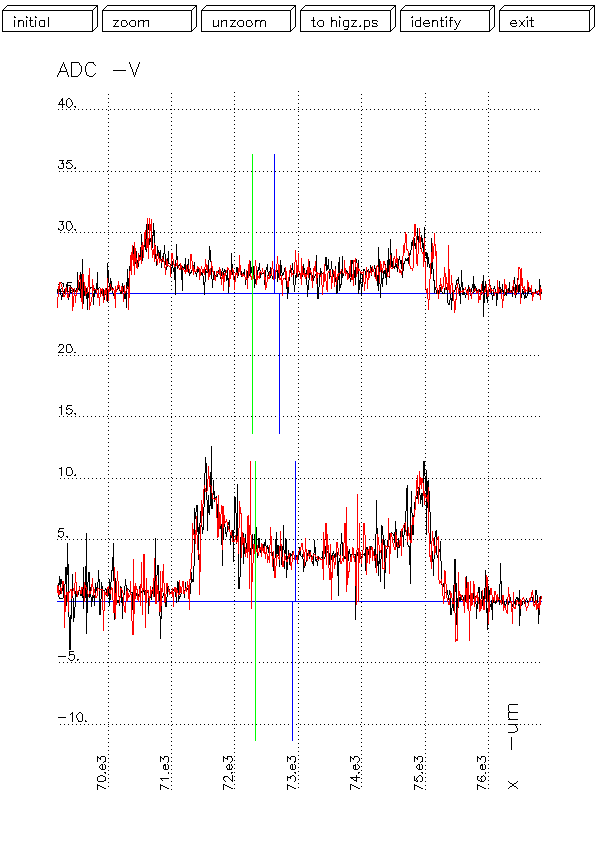

FIGURE 1
