Log entry time 12:04:21 on October 9,2000
Entry number 49890
keyword=Harp Scan, No raster
Harp scan, No raster, 5uA cw
***************************************************************
Uncorrected Corrected Sigma Base
position position Width Width
Scanner #5 4ax: 895.0um 975.0um 125.0um
Scanner #5 4ay: -184.00um -94.00um 88.0um
Scanner #6 4bx: 713.00um 513.00um 120.0um
Scanner #6 4by: 722.00um 532.00um 118.8um
***************************************************************
v Uncorrected Corrected
position position
Target x pos : 680.23 um 429.81 um (+ for beam left)
Target y pos : 885.14 um 644.72 um (+ for too high)
Beam h angle: 0.03 mrad 0.07 mrad (+ for clockwise)
Beam v slope: 0.15 mrad 0.10 mrad (+ for ascending slope)
***************************************************************

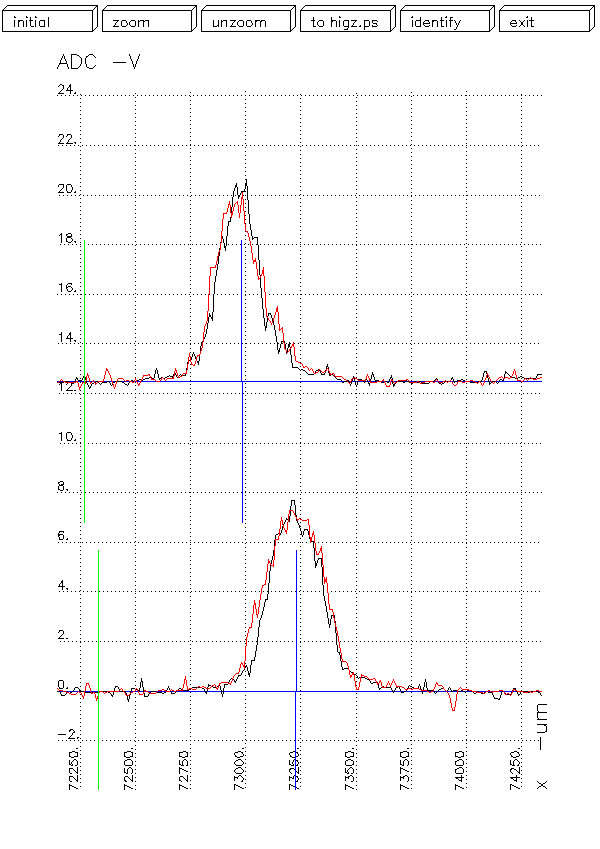

FIGURE 1
