User name M Jones
Log entry time 06:01:37 on October29,2000
Entry number 51289
keyword=Lead glass tdcs
Lead glass tdcs. Set cuts in espace_kumac/e99007_facdev.kumac for
each lead glass block using the paw_kumac/get_calo_tdc.kumac .

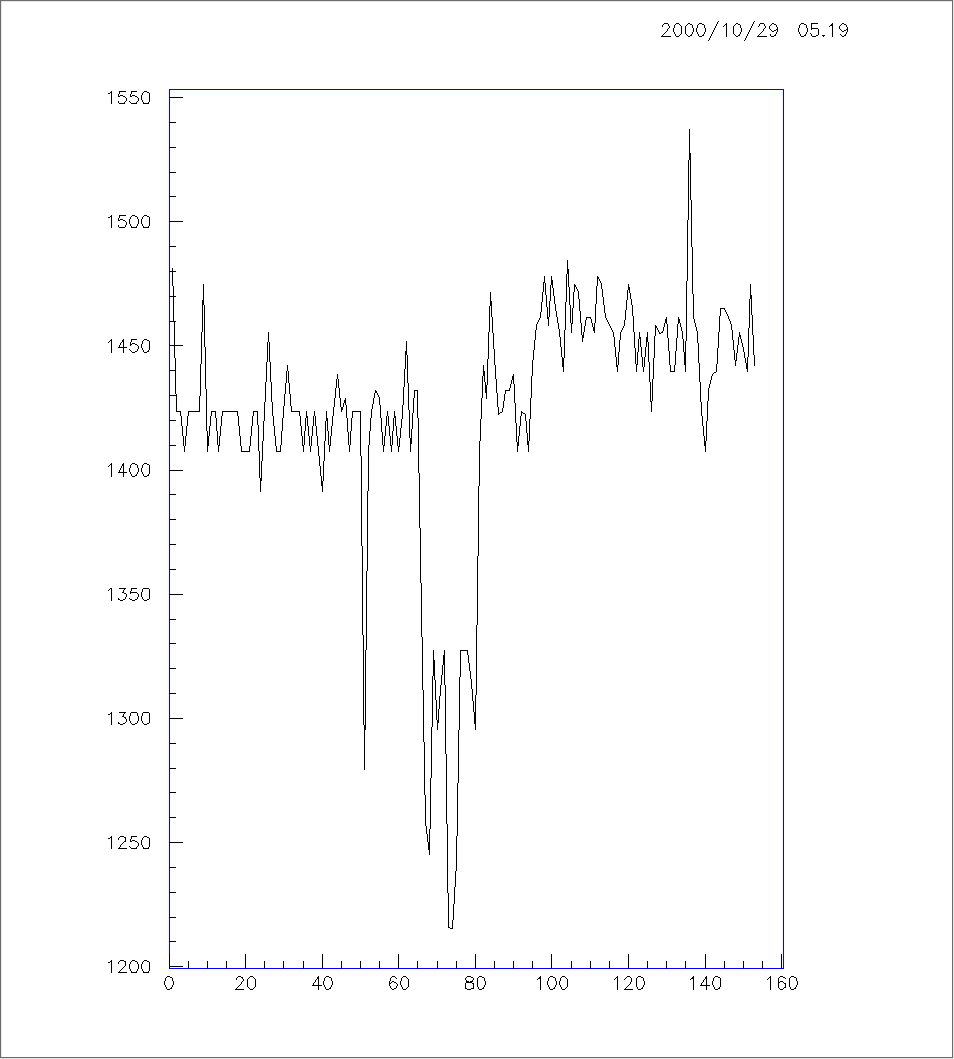

The figure shows the peak position of the tdc (y-axis) versus the
lead glass tdc histogram number. There are a few bad tdc spectra.
Few tdc hits in 44,61
No hits in 65,75,84,96,136,144,145,152,153
bad spectra 68
Not so good 73
Two peaks 97
The bad tdcs don't show up in figure below because I put a tdc peak at
some value when using the paw kumac.
FIGURE 1
