A "black body" is an idealized radiator. This is an
object which absorbs all the radiation that falls upon it. It has zero
reflectance. The absorbed energy can raise the black body's temperature.
Eventually the black body's temperature is high enough so that the energy
it radiates is equal to the energy it is absorbing, at which point its
temperature stabilizes.
If we measure the total energy coming off the black
body as a function of its wave length , that is its spectrum, we find that
the wave length of the maximum energy output is given by the "Wien
law"
Wien law lm
= 2.898 x 107 /T,
|
Although this object is an idealization, it is closely followed by stars, planets, etc. . The first approximation we use to all celestial objects is that of the black body.
We are familiar with the phenomenon of different colors
associated with different temperatures. Heat a metal bar and it begins
to glow first red, then yellow, white, and finally blue at its higher temperature.
The temperature is intimately connected with the color of the object.
(see table 13.4 in Kaler's book)
Stellar Class | temperature(K) | wave length at max. energy output for mid range
(Angstroms = 10-8 cm) |
color to the human eye |
O | 28000 - 50000 | 743 | blue |
B | 9900 - 28000 | 1529 | blue-white |
A | 7400 - 9900 | 3350 | white |
F | 6000 - 7400 | 4325 | yellow-white |
G, sun = G2 star | 4900 - 6000 | 5317 | yellow |
K | 3500 - 4900 | 6900 | orange |
M | 2000 - 3500 | 10538 | orange-red |
none | 300, room temperature | 96600 | black |
In fact, the whole shape
of the black body spectrum as a function of temperature and wave
length is known as can be seen from the diagrams from the Handbook of
Astronomy and Aerospace .
( http://adsbit.harvard.edu/books/hsaa/toc.html
)
If we know the temperature of the black body then we can use the Stefan-Boltzmann law to find the power radiated for each square meter.
Stefan-Boltzmann law
P = sT4 , where s
=
5.7 x 10-8 Watts/m2/K4 .
Boltzmann http://www-groups.dcs.st-and.ac.uk/~history/Mathematicians/Boltzmann.html

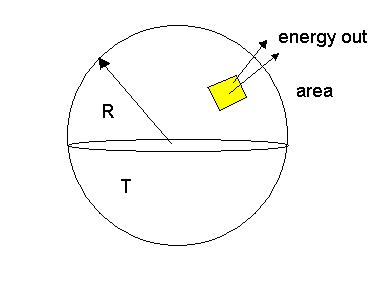

In the diagram we have a star of radius R at a temperature T. The total power (energy/sec) radiated out of the small area is then
P x area. Since the total area of the sphere is 4piR2 , the total power radiated by the star is
Ptotal = 4piR2
x sT4 .
For example, for our Sun, R = 6.96 x 108m,
T = 5780 K, then
Ptotal = 3.83 x 1026 Watts
The analysis of stellar spectra in the 1920's by Cecilia Payne-Gaposhkin demonstrated that the spectral sequence OBAFGKMNS was mainly due to temperature differences in the stars rather than to actual chemical differences. Stars are overwhelmingly made of hydrogen with traces of the heavier elements. Temperature differences between different categories of stars lead to different atomic ionization states (Saha equation) (states where electrons have been removed from the atoms leaving them with a net positive charge ) which is reflected in different probabilities for absorption of light. It was subsequently discovered that the temperature of the star depends basically on the mass of the star. The larger mass stars represent a greater conversion of gravitational potential energy into kinetic energy of motion of the atomic nuclei in the star's center. This larger kinetic energy has a dramatic effect on the ability of the star to support nuclear fusion reactions in its core. The greater the nuclear fusion rate, the more energy per second the star can emit into space.
Astronomy: A Brief Edition, James B. Kaler, Addisson-Wesley, 1997
